ZM2-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

---

Specifications:
Torque Capacity (ft/lbs): 310
Clutch Disc Diameter (mm): 224
Input Shaft Diameter (inches): 15/16"
Input Spline Spline Count: 22

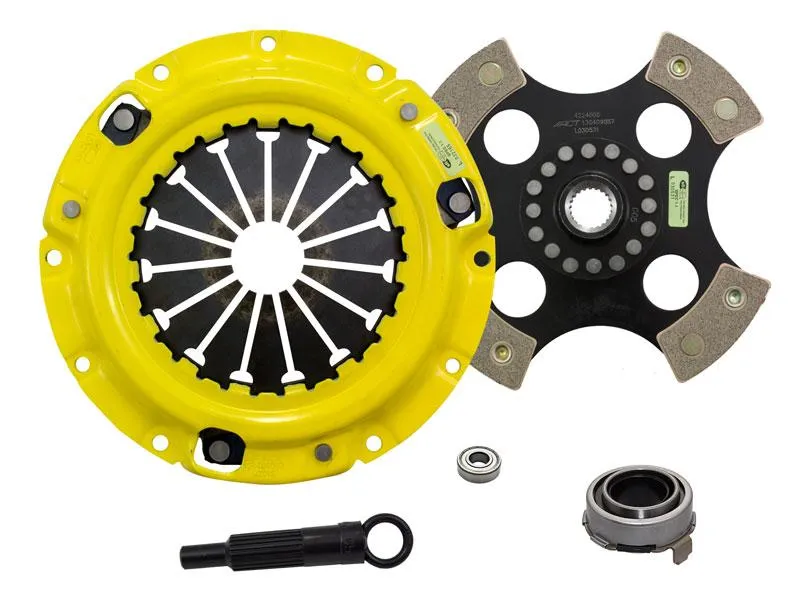

What's Inside The Kit?
Pressure Plate: MZ012
Clutch Disc: 4224005
Release Bearing: RB813
Pilot Bearing: PB1005
Alignment Tool: AT05

---

Fitment:
90-93 Mazda MX-5 Miata 1.6 B6ZE *Fits with 94 flywheel*
94-97 Mazda MX-5 Miata 1.8 BP
99-00 Mazda MX-5 Miata 1.8 BP-4W
01-05 Mazda MX-5 Miata 1.8 BP-Z3
04-05 Mazda MX-5 Miata Mazdaspeed 1.8 BP-4W
