ZM2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

---

Specifications:
Torque Capacity (ft/lbs): 403
Clutch Disc Diameter (mm): 224
Input Shaft Diameter (inches): 15/16"
Input Spline Spline Count: 22

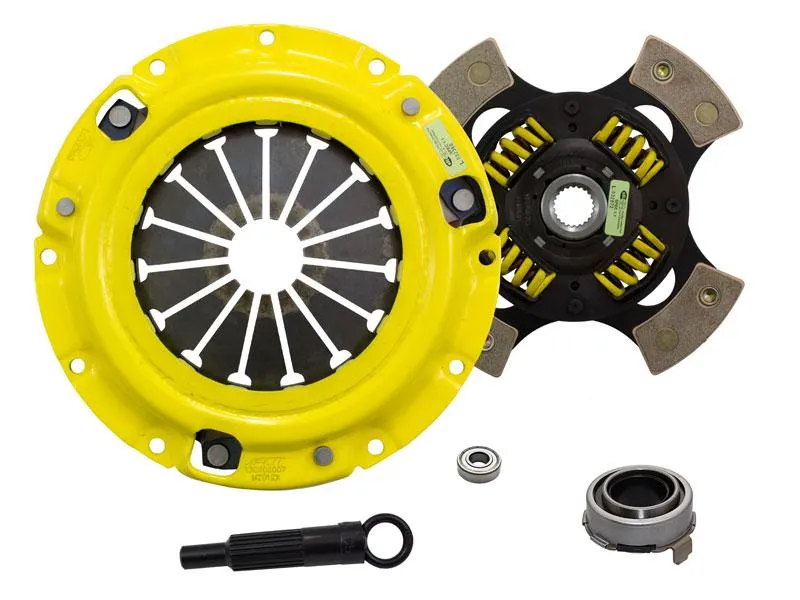

What's Inside The Kit?
Pressure Plate: MZ012X
Clutch Disc: 4224205
Release Bearing: RB813
Pilot Bearing: PB1005
Alignment Tool: AT05

---

Fitment:
90-93 Mazda MX-5 Miata 1.6 B6ZE *Fits with 94 flywheel*
94-97 Mazda MX-5 Miata 1.8 BP
99-00 Mazda MX-5 Miata 1.8 BP-4W
01-05 Mazda MX-5 Miata 1.8 BP-Z3
04-05 Mazda MX-5 Miata Mazdaspeed 1.8 BP-4W
