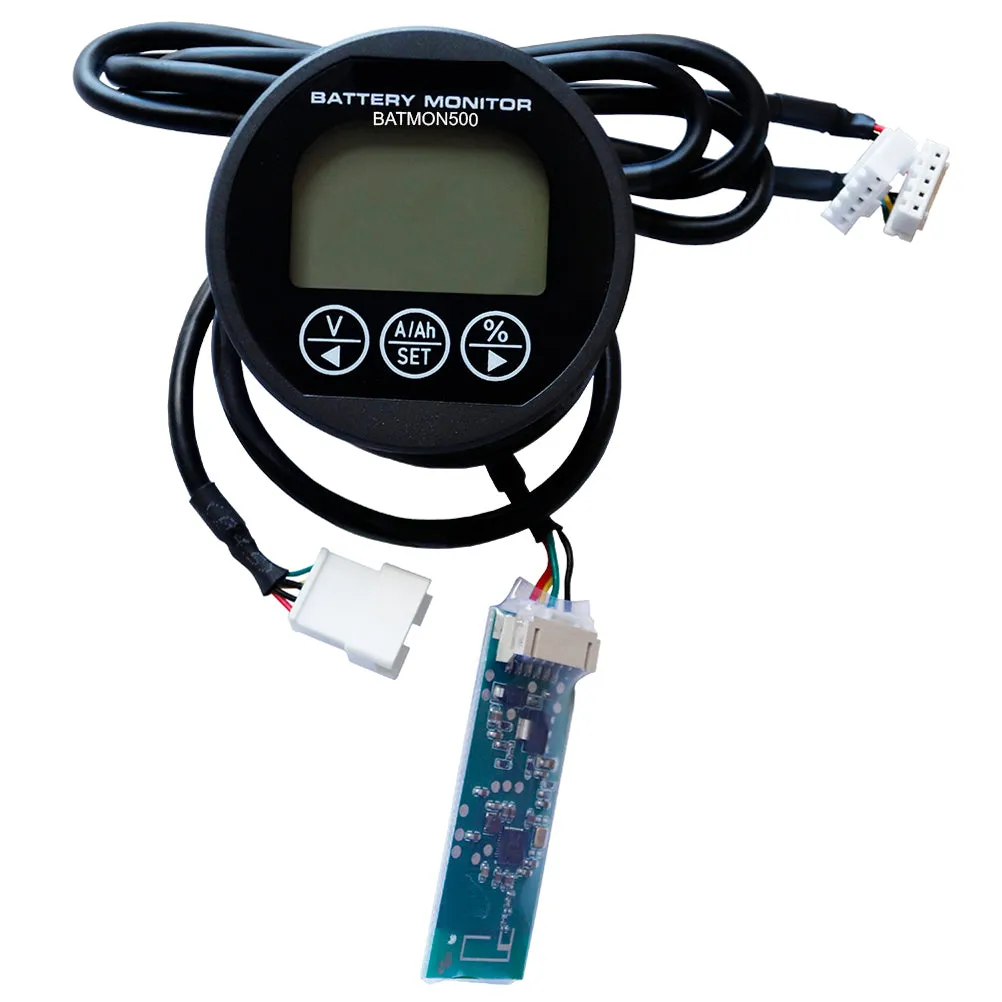

AIMS Power Remote Battery Monitor Overview

The AIMS Power Remote Battery Monitor is a high-precision meter that allows you to check the status of your battery via the monitor display or your smartphone. It monitors voltage, current, State of Charge (SOC) and total ampere hours. Up to 500 Amps, 8V-80V DC.

Through the use of the current shunt, the battery monitor measures the discharge or recharge currents and calculates the Ampere-hours (Ah) going in and out of the battery. High-precision voltage measurements are taken and displayed in real-time through the use of a field-installed sense wire.

The AIMS Power battery monitor is compatible with all types of batteries including Lithium-ion, lead-acid and nickel-metal hydride batteries.

AIMS Power Remote Battery Monitor Features

Data Displayed

Battery Voltage
Battery Current
Battery State ofCharge (SOC)
Total Ampere-hour capacity

Included Components

Current shunt
Shielded wire (1M)
Display
Butterfly nut
Sense wire 22AWG (1 M)
Bezel square

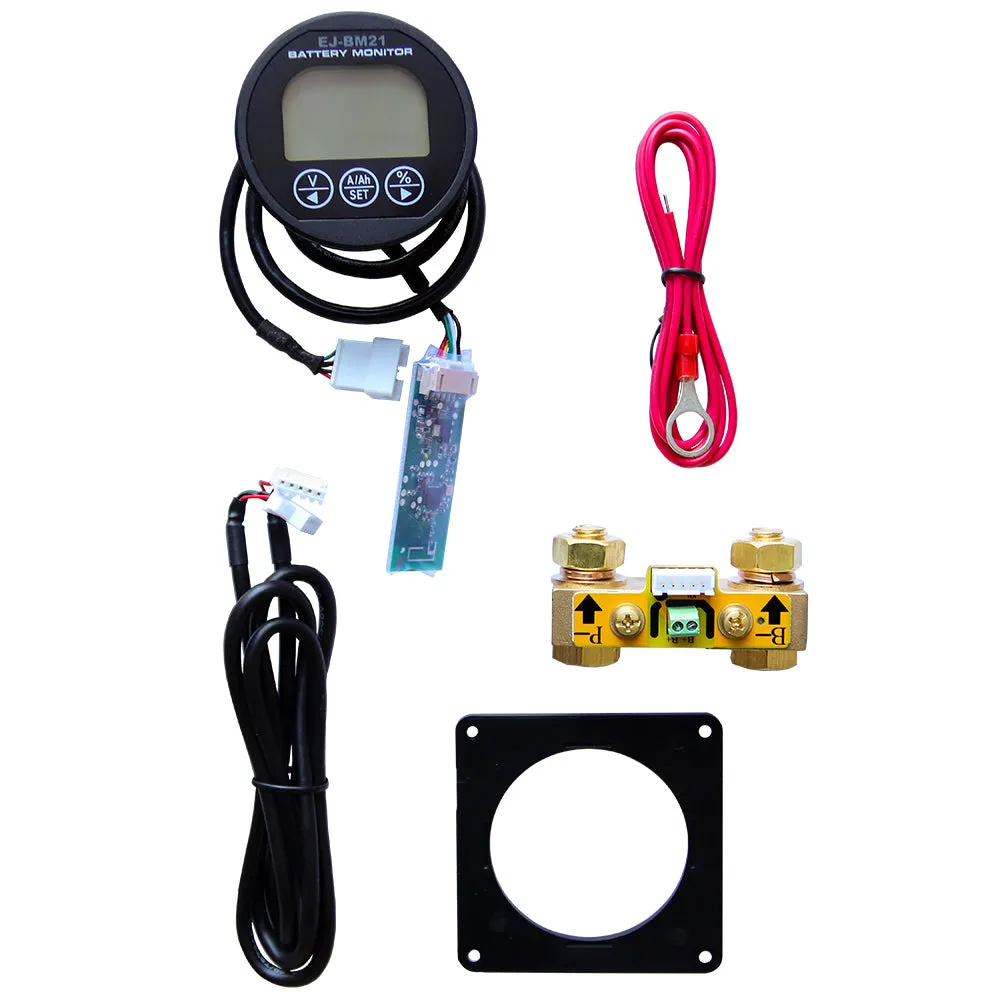

What's In The Box

Current shunt
Shielded Wire (1 M)
Display
Butterfly Nut
Sense Wire 22AWG (1 M)
Bezel square

AIMS Power Remote Battery Monitor Specifications

Parameter	MIn	Max	U of M
Voltage	8	80	V
Current	0	500	A
Capacity	.1	999	Ah
Temperature	0	35	C
Active Parasitic Current		14	mA
Standby Parasiric Current		.8	mA
Sleep Parasitic Current		80	uA
Voltage Accuracy	/-1		%
Current Accuracy	/-1		%
Capacity Accuracy	/-1		%
