Product Details
＋
Features and Benefits
- Can be operated with two handpieces dynamically sharing the 80 watts output power based on demand adding even more application flexibility and speed.
- Configured with two Metcal Advanced Soldering and Rework Handpieces.
- Microprocessor controlled power supply providing more power for challenges such as high mass components, multi-layered boards and lead-free solders.
- Improved ergonomics with lightweight handpieces.
- Greater process control with SmartHeat® Technology.
- ESD-safe with incoming AC ground monitoring circuitry.
- Built-in power indication meter with digital display and bar graph that dynamically provides the operator with feedback on the status of the soldering operation.
- Metcal TipSaver™ Workstand improves tip life with its "Auto-Sleep" function.
- Upgrade Kits Available for 2nd Simultaneous Port: Desoldering, Precision Tweezer, Soldering, and much more.

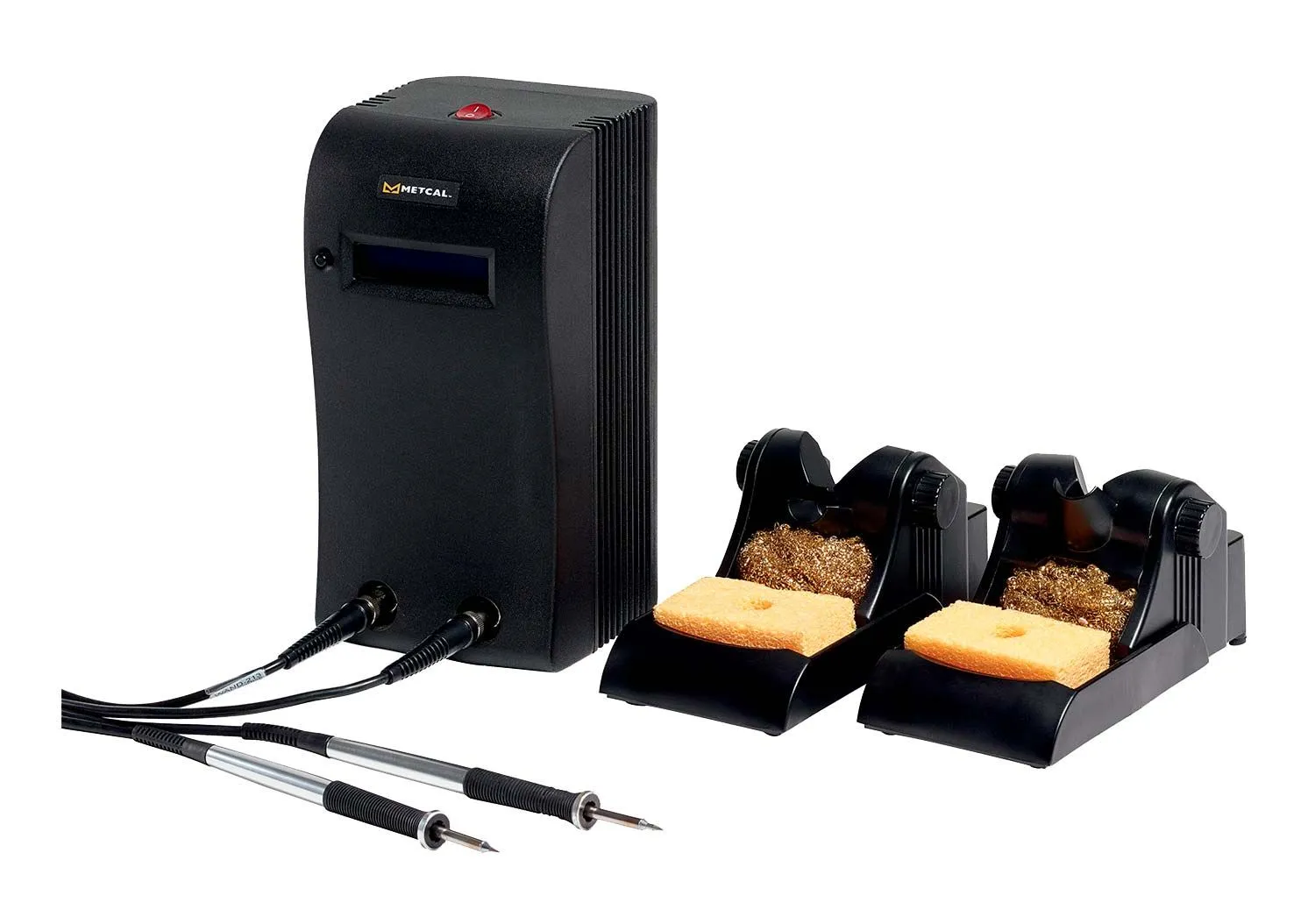

Product Includes
- MX-PS5200: Power Supply, 100 to 240 VAC input, dual switch port with LCD Display
- MX-H1-AV: Two Metcal Advanced™ Handpieces, Soldering and Rework with two cartridge removal pads
- MX-W1AV: Two Workstands for Metcal Advanced™ Handpiece, Soldering and Rework with two sponges and two brass pads
New Dual Port Simultaneous Soldering and Rework System highly effective for soldering applications including: lead-free, high mass components or boards, thermally sensitive components requiring low operating temperature, high volume production soldering and touch-up soldering operations. In addition, the MX-5211 can be used for conduction rework of SMDs when using SMTC Series soldering cartridges simultaneously. Includes (2) MX-H1-AV Advanced™ Solder & Rework Handpieces.
