| Product Attribute | Attribute Value |
|---|---|
| Accuracy | 0.05 % |
| Case Material | Polystyrene |
| Cut Out, Panel | 2.06"Dia. (Standard), 2.2×1.34" (Behind the Panel) |
| Dimensions | 2.53" L x 1.99" W x 2.31" H |
| Dimensions, Cutout, Inches | 34 x 55.8 (Behind the Panel), 52.39 Dia. mm |
| Display Type | Analog |
| Function | Voltmeter |
| Material, Casing | Polystyrene |
| Measurement Range | 0 to 300 VAC |
| Measuring Range | 0 to 300 VAC |
| Movement | Polarized-Vane Solenoid |
| Primary Type | Electronic |
| Product Header | Standard Accuracy Analog Meter |
| Series | |
| Type | Electromechanical |
| Voltage Range | 0 to 300 V |

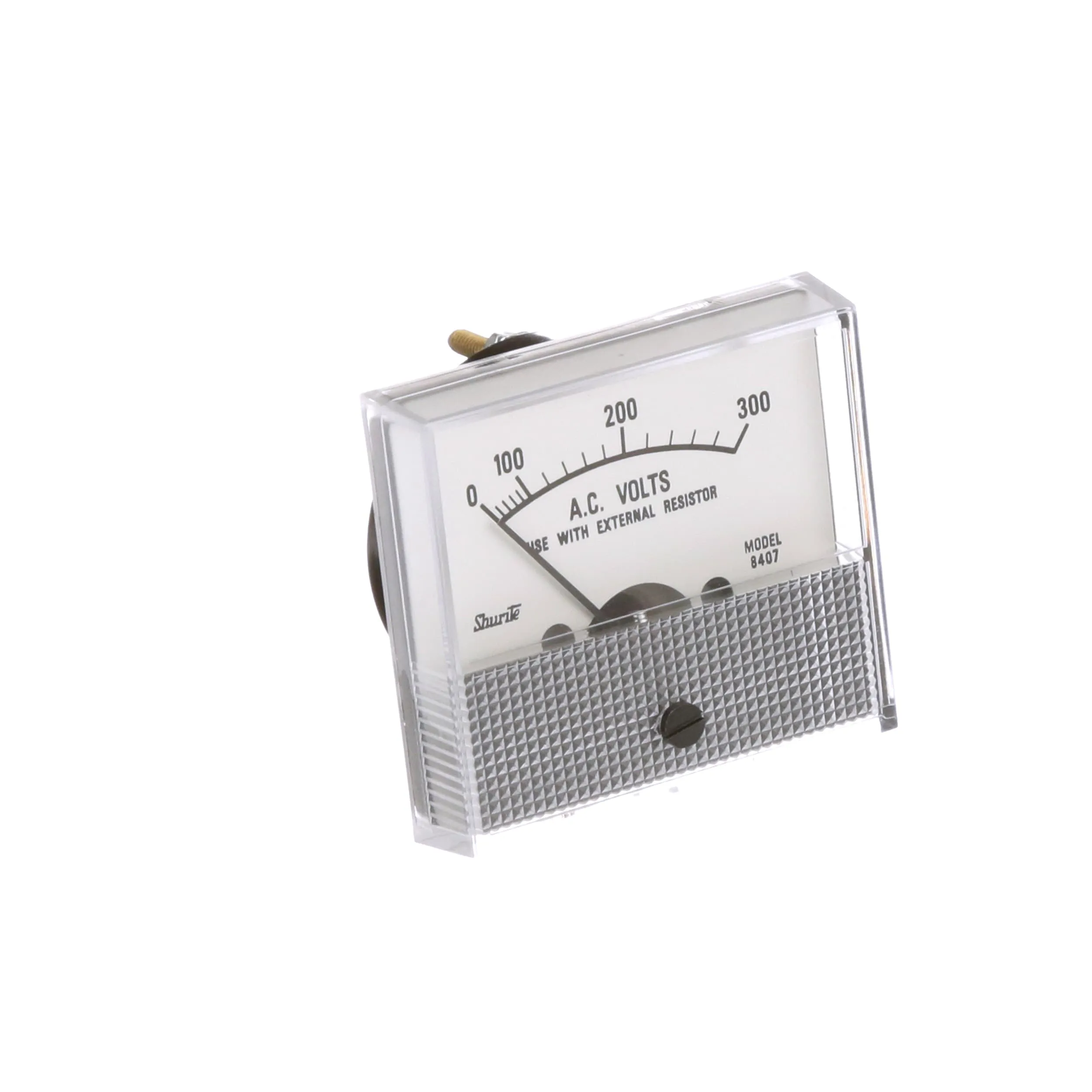

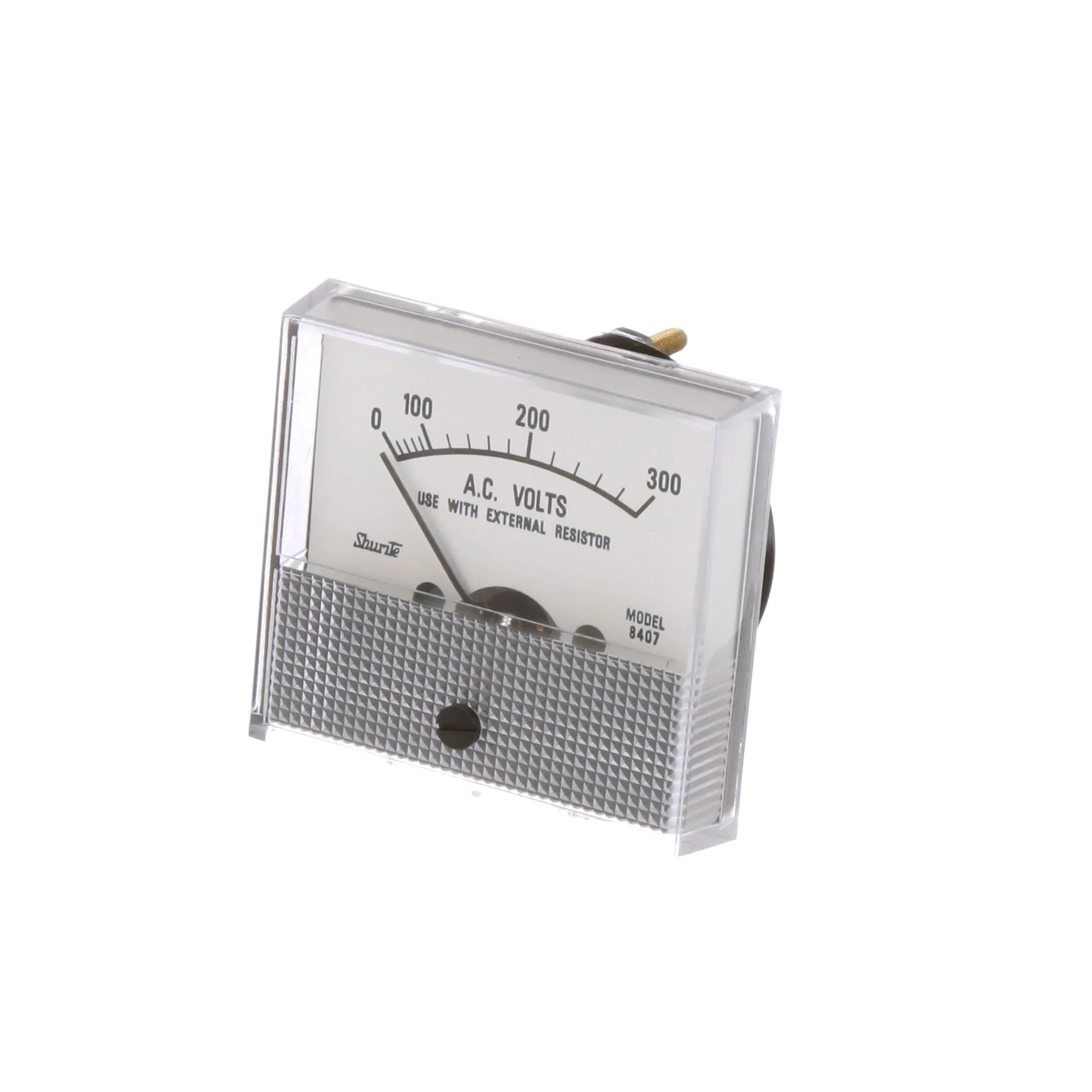

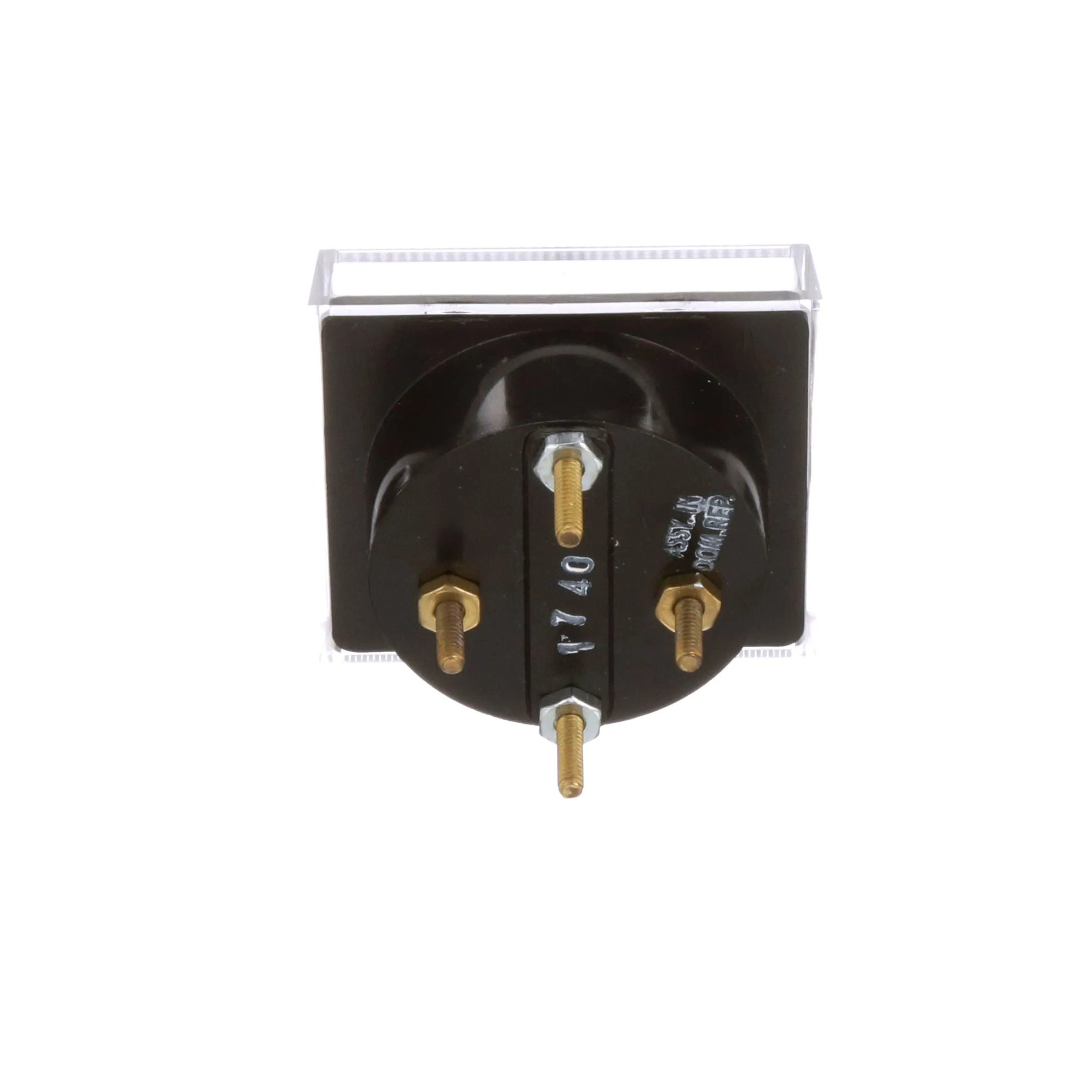

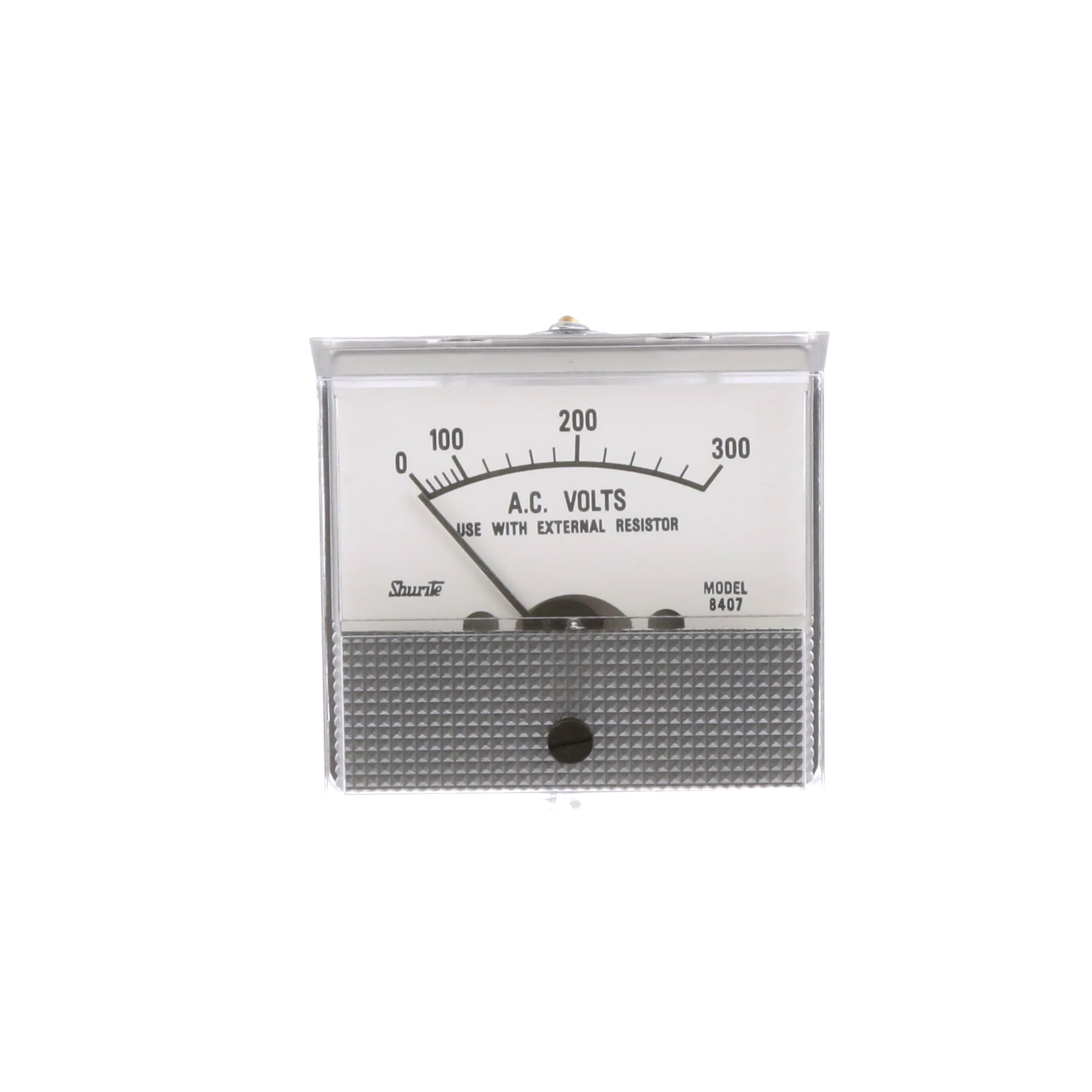

Overview
AC Voltmeters, Polystyrene Case Material, 5% Accuracy
750 and 850 Series
A variety of meters are available; moving magnet, moving coil with accuracies from 1.5% to 5% depending on the selection. The selection listed below represents the most commonly requested product types. We offer, however, a far greater selection from which to choose. Inputs can be AC or DC, voltage, current, VU and frequency.
A 5% accuracy meter available in front or behind the panel mount. These contain an inherently rugged pivot and jewel moving magnet construction. The 850 model represents an approximate 2.5" square meter, while the 750 is larger with a 3.5" W x 3.0" H face. Both Models have a 2" barrel and zero adjust feature. These meters are available measuring voltage, current and frequency. To order behind the panel meters, add the suffix "BP" to the part number.
This meter have metal scales, white field, printed black, age and moisture resistant, install in front or behind panels, special scales, ranges and dampening.
